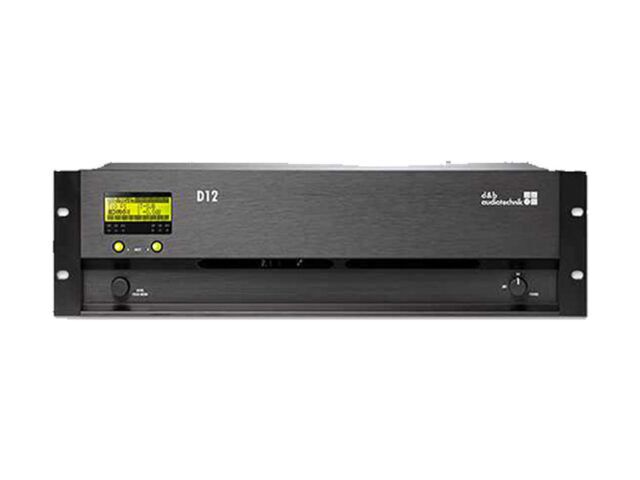

d&b D12 Amplifier

£40.00

Prefer to speak to someone? Email us or give us a ring on 0141 648 3366
Rental Product Information
Weight: 13 Kg
d&b D12 Amplifier Specifications
  • Dual-channel amplifier supporting low impedance loads (4–16 Ω)
  • Output power: 2 × 750 W into 8 Ω; 2 × 1200 W into 4 Ω (continuous sine wave)
  • Frequency response (–1 dB): 28 Hz to 40 kHz
  • THD + N (20 Hz–20 kHz): < 0.1 %
  • Signal-to-Noise (unweighted, RMS): > 110 dBr
  • Delay capability: 0.3–340 ms (100 m / 328 ft) per channel
  • 4-band parametric EQ per channel, with boost/cut and notch filtering options
  • Inputs: 2 × analog XLR (balanced, 44 kΩ)
  • Digital input: AES/EBU via XLR, sampling 48/96 kHz
  • Link outputs: analog (XLR) and digital (AES/EBU)
  • Output connectors: NL4 or NL8 (or EP5 for SenseDrive)
  • Remote / monitoring: 2 × RJ45 for CAN-Bus / Remote network
  • Protection & monitoring: load monitoring, system check, thermal, overcurrent, overvoltage protection
  • Power supply: Autosensing switch mode PSU (115/230 V, 50–60 Hz; optional 100/200 V)
  • Dimensions: 3 RU × 19″ × 353 mm (13.9″ depth)
Manufacturer Description

The d&b D12 amplifier is a 3-RU, dual-channel amplifier that delivers medium to high power into low-impedance speaker loads (4 to 16 Ω). It includes ready-made setups for all current d&b loudspeaker models, plus a linear mode for custom DSP use. A user-configurable delay (0.3–340 ms) and 4-band parametric EQ are built in, giving precise tuning control independently per channel. For low-frequency enhancement, when used with EP5 connectors and proper cabling, the D12 amplifier engages SenseDrive, which actively compensates for cable losses and enhances bass clarity. On the connectivity side it offers analog and AES/EBU inputs, link outs, remote control via CAN-Bus, and full protection/monitoring tools like load monitoring and system check.

Description

The d&b D12 amplifier is engineered for reliability, sonic transparency, and integration with d&b loudspeaker systems. Featuring a 3-RU chassis, it supports analog and AES/EBU input, link outputs, remote control access, and a clear LCD plus rotary encoder for navigation. The DSP engine allows independent 4-band parametric EQ and delay of up to 340 ms per channel. A “linear mode” lets you bypass d&b presets if custom voicing is needed. The D12 amplifier  also supports d&b’s SenseDrive system (when used with EP5 connectors) to dynamically correct for cable impedance, delivering tighter bass performance. Safety and system monitoring are thorough: you get load monitoring, system check, thermal and overload protection, and fault diagnostics.
