Blackmagic: Analog – SDI Converter

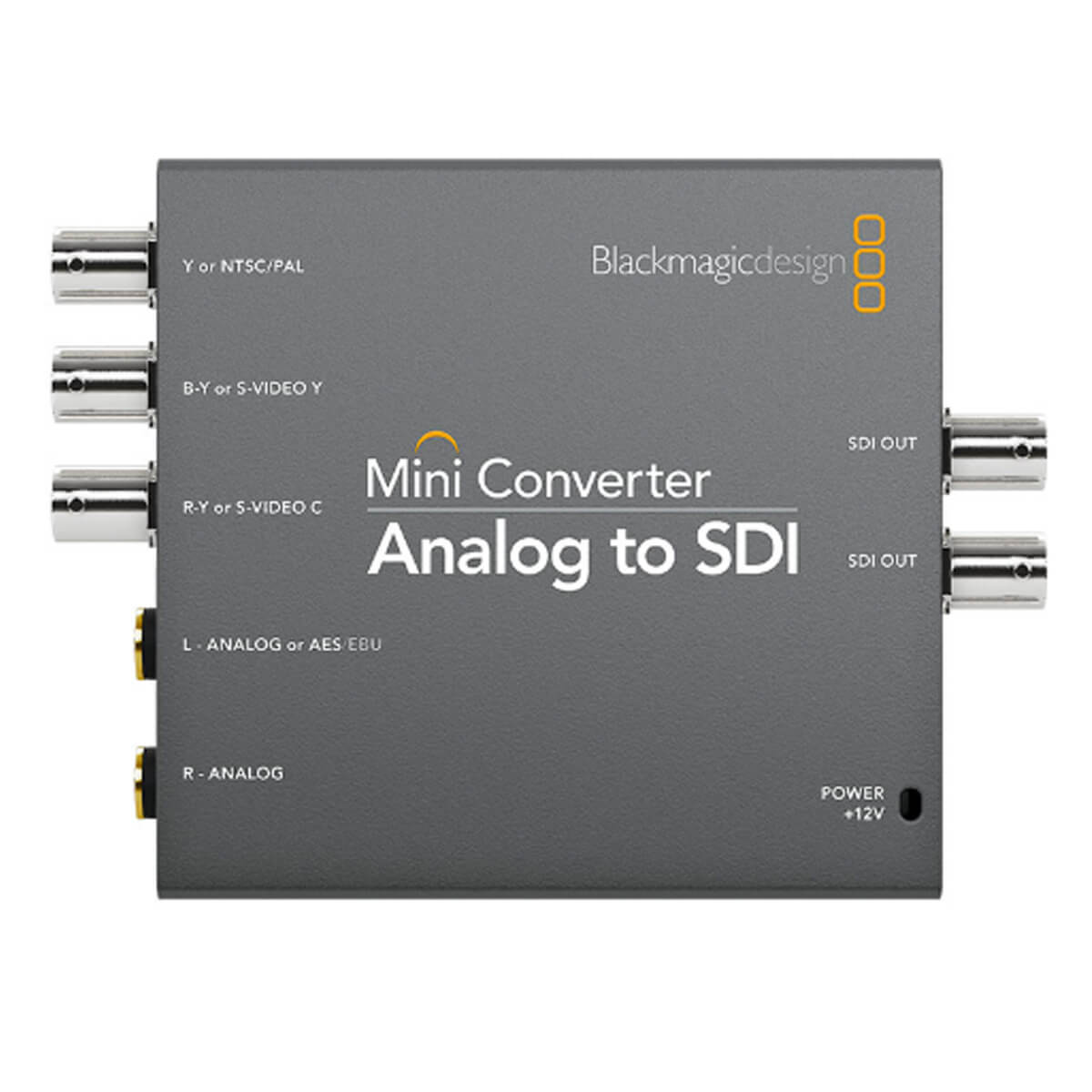

A compact Mini Converter that transforms analog video (component, NTSC/PAL, S-Video) into SD- or HD-SDI, with embedded analog or AES/EBU audio.

Prefer to speak to someone? Email us or give us a ring on 0141 648 3366
Rental Product Information
Weight: 0.237 Kg
Blackmagic: Analog – SDI Converter Specifications
  • 2 × SDI video outputs
  • Analog video inputs: Component (SD/HD), NTSC, PAL, S-Video
  • Audio inputs: 2 × balanced analog; 2 × AES/EBU digital
  • Auto-detection of SD or HD input format
  • Re-clocking on SDI outputs to improve signal integrity
  • Supported standards: 525i59.94 NTSC, 625i50 PAL; 720p50/59.94/60; 1080i50/59.94/60
  • SDI compliance: SMPTE 259M, 292M, 296M; ITU-R BT.656; ITU-R BT.601
  • SDI video sampling: 4:2:2; SDI audio sampling: 48 kHz, 24-bit
  • Colour space: YUV

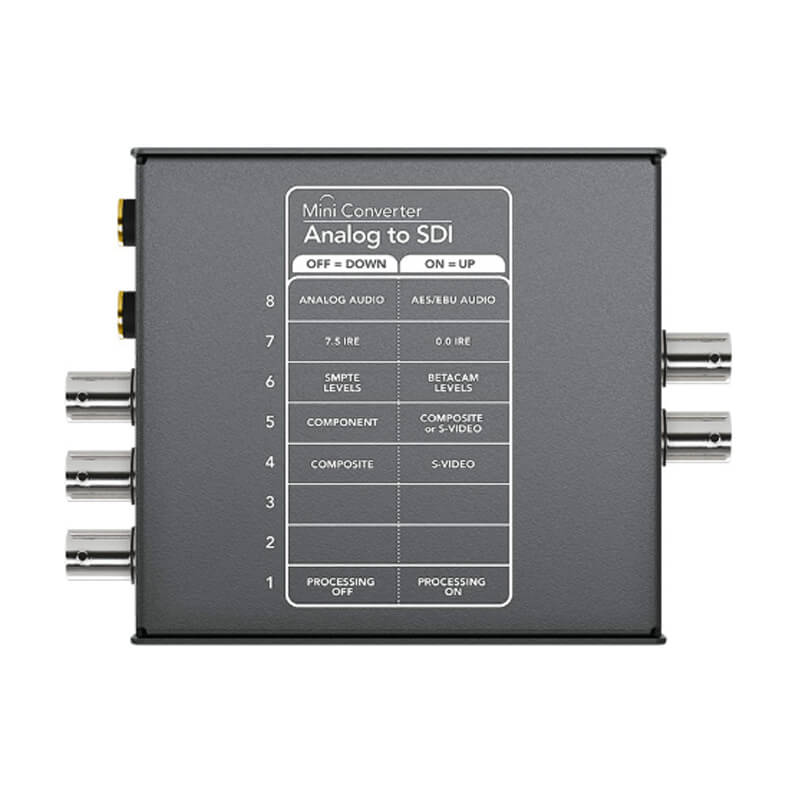

  • Configuration: Mini-switches or USB 2.0 (480 Mb/s)
  • Power: 12V universal power supply included; operational range 12 – 31 V DC
  • Power consumption: ~ 6.50 W
  • Operating temperature: 0° – 40°C; Storage: –20° – 45°C; Humidity: up to 90% non-condensing
  • Warranty: 3-year limited manufacturer’s warranty
Manufacturer Description

The Mini Converter Analog to SDI from Blackmagic Design is the ultimate bridge between legacy analog video gear and modern digital workflows. It supports component (SD/HD), NTSC, PAL, and S-Video inputs, converting them into professional-grade SD or HD SDI output over two BNC connectors. With two channels of analog or AES/EBU audio, you can cleanly embed audio into your SDI signal — perfect for archiving, broadcast, or production. Thanks to auto-detection of input format and built-in reclocking, this converter delivers consistent, jitter-free performance. Powered via a universal 12V adapter, it fits seamlessly into studio racks, live broadcast setups, or mobile rigs.

Description

The Blackmagic Analog to SDI Mini Converter is designed to bridge the gap between classic analog video formats and modern SDI infrastructures. It accepts component (SD/HD), NTSC, PAL, and S-Video as input, and outputs on two SDI BNC connectors, supporting both SD and HD formats via auto-detection. For audio, you get two channels of balanced analog input plus two channels of AES/EBU, which the converter embeds directly into the SDI signal — perfect for clean, sync’d audio + video feeds. It includes reclocking to ensure signal integrity and uses front-panel mini-switches or USB for configuration, enabling reliable integration into broadcast or archival processes. Power is supplied via a 12V universal adapter, making it flexible for both studio and mobile setups.
